Description
Spiral Freezer Scanico / Thermofin
Production year: 2017
Condition: good, fully workable

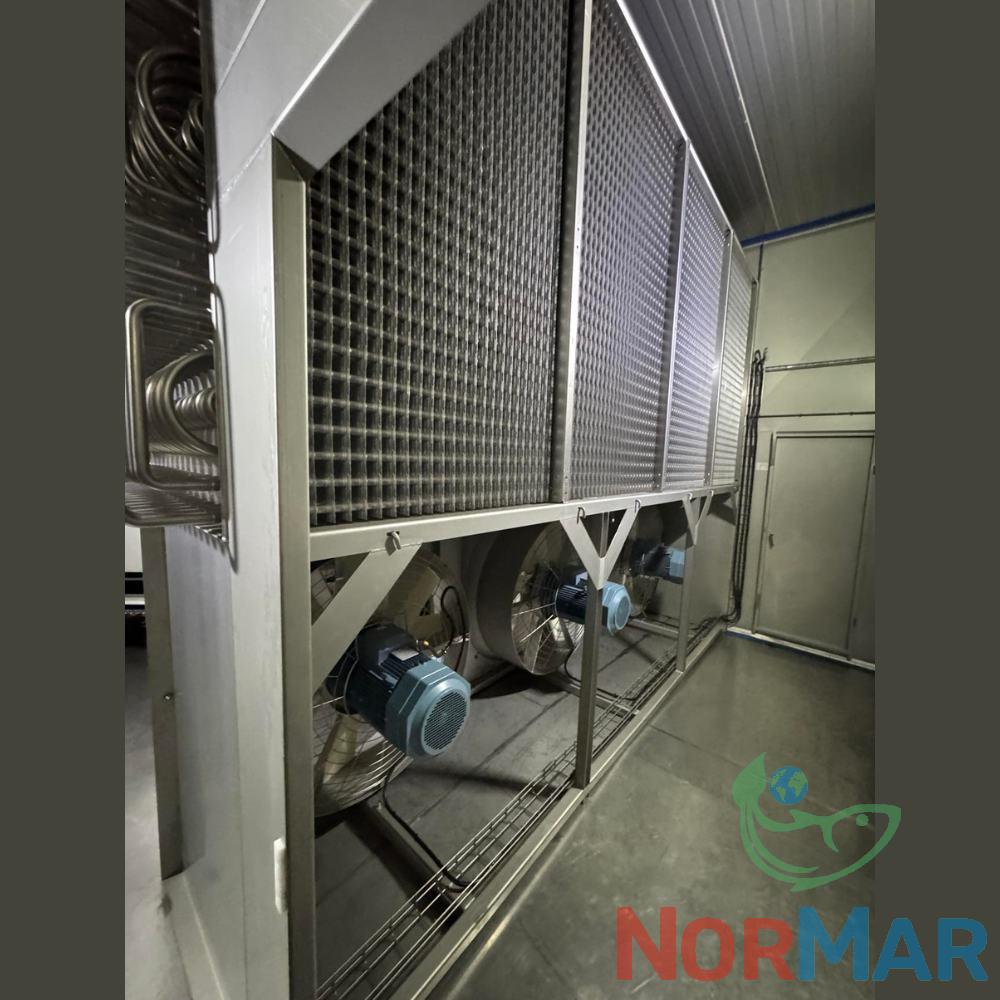

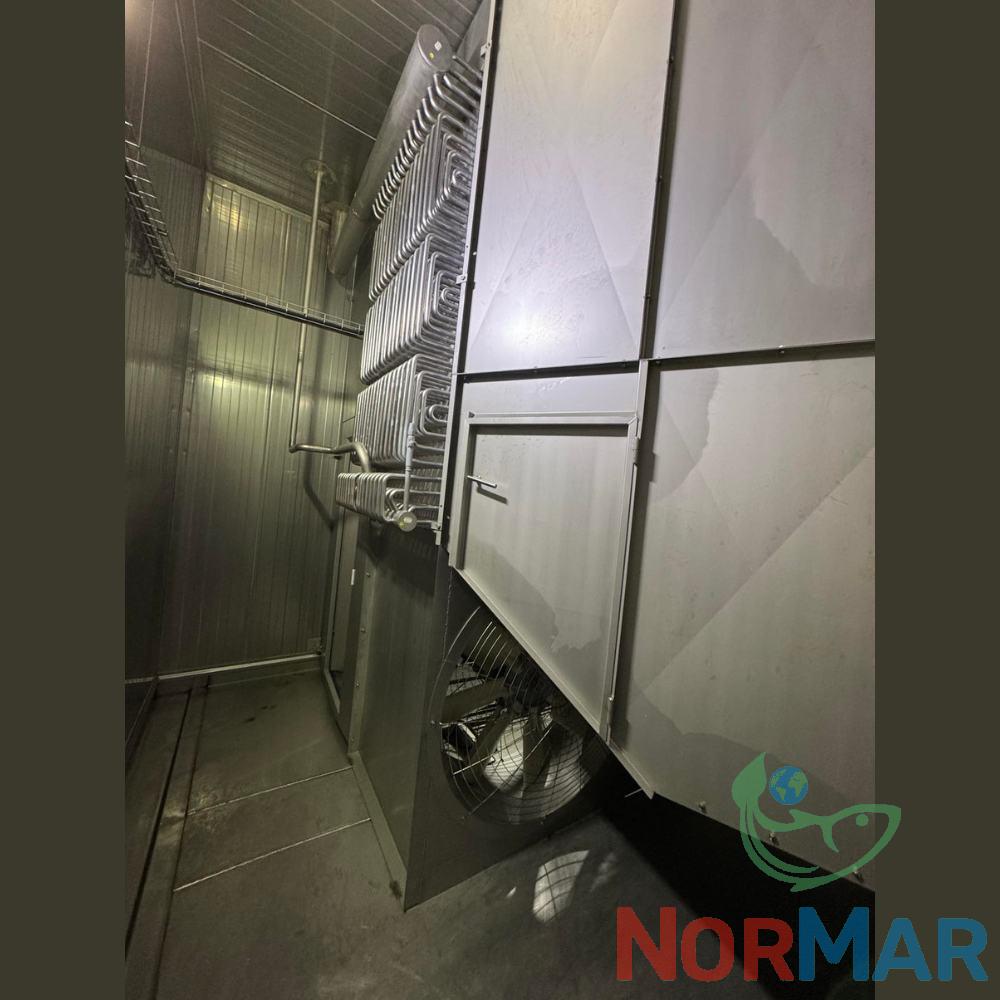

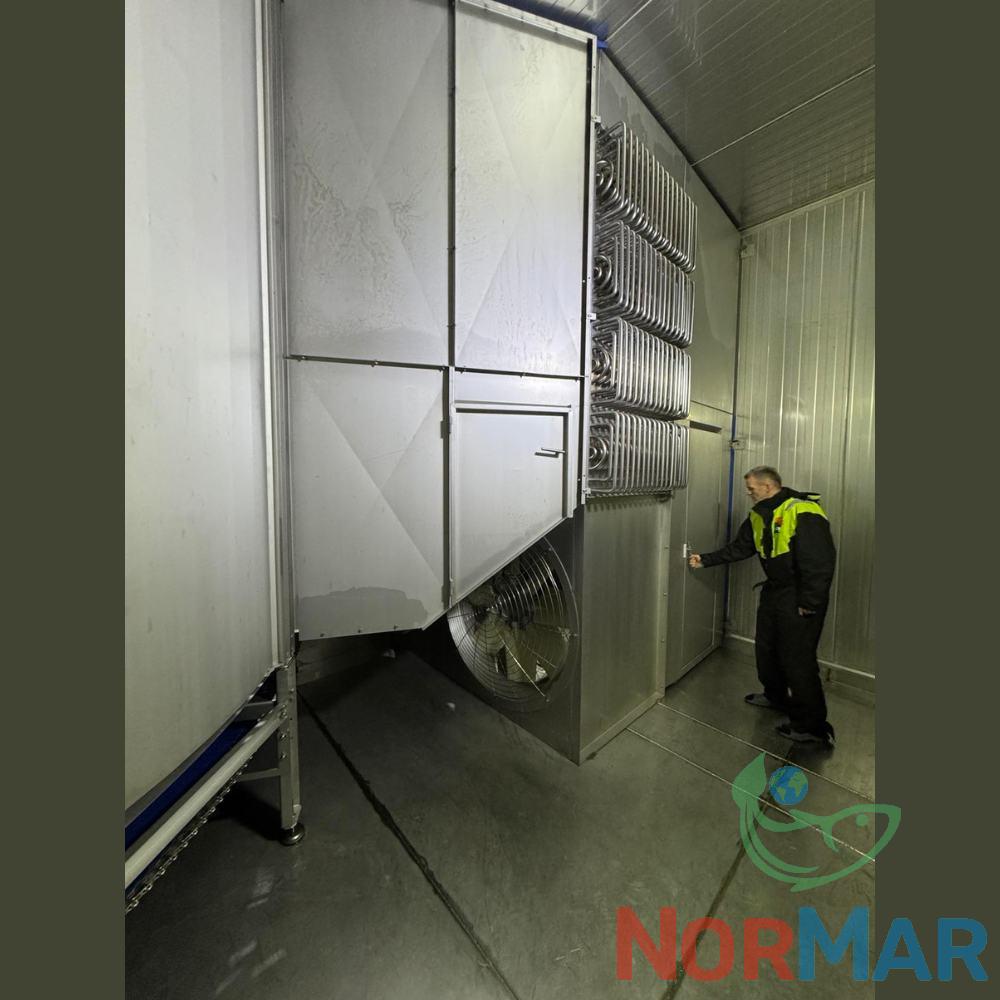

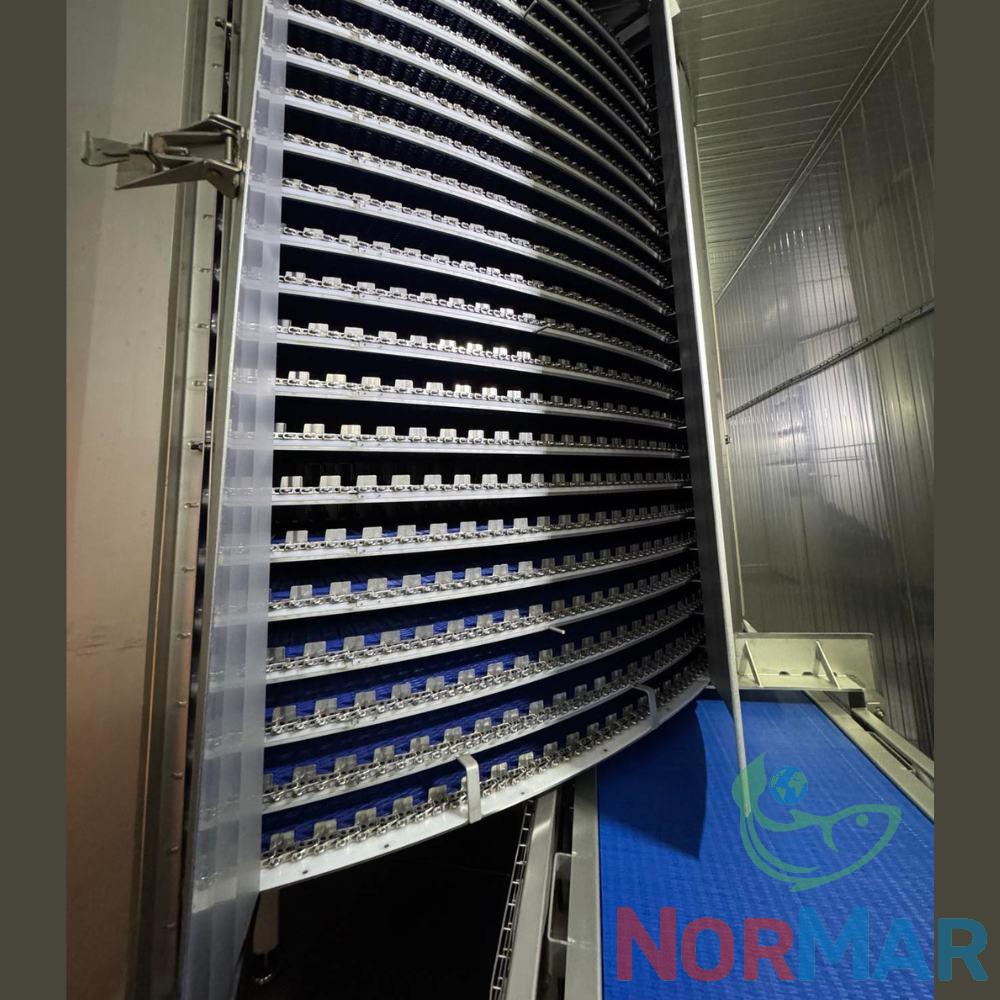

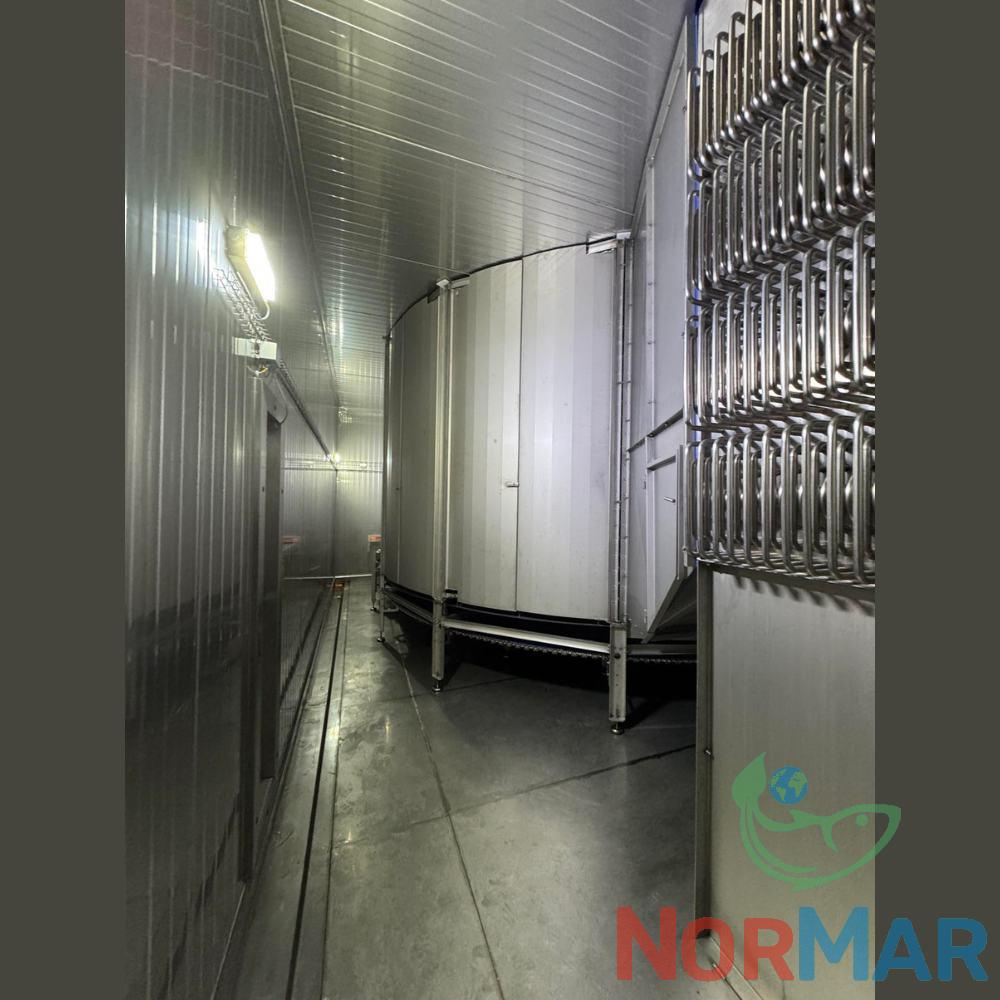

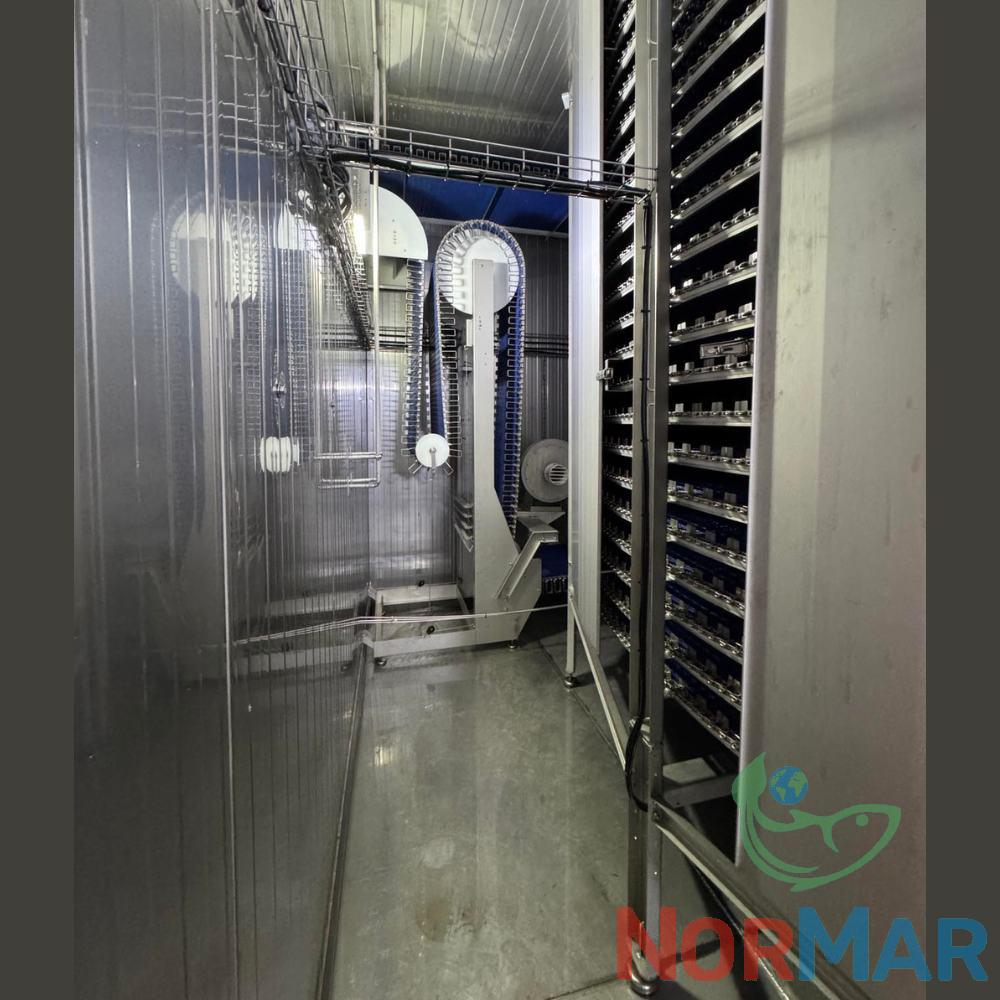

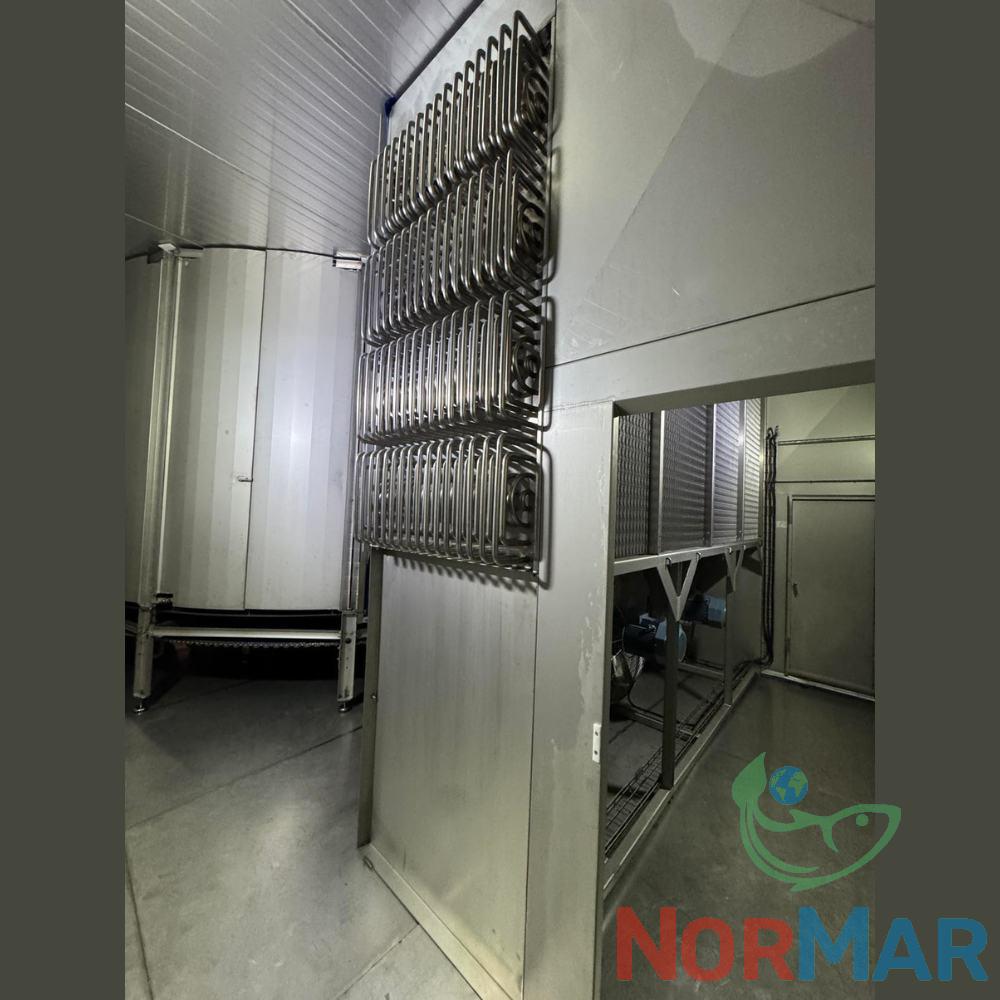

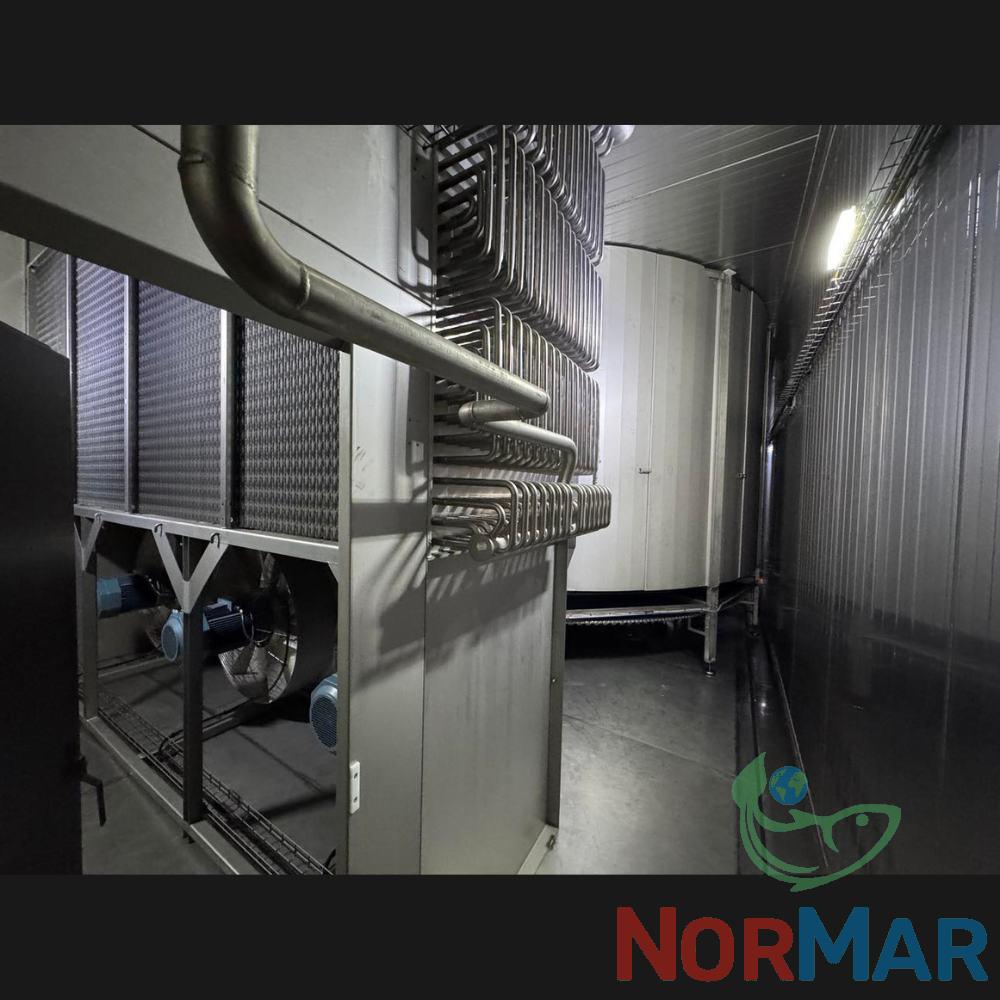

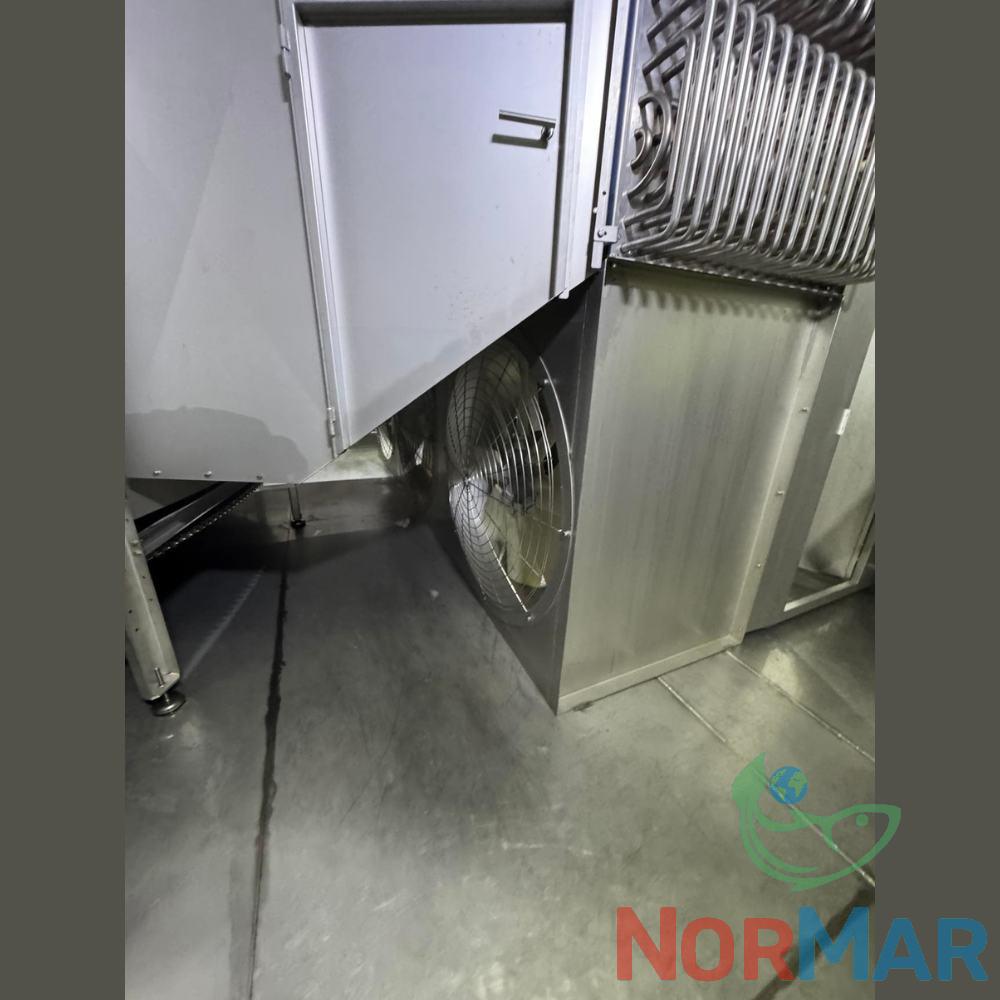

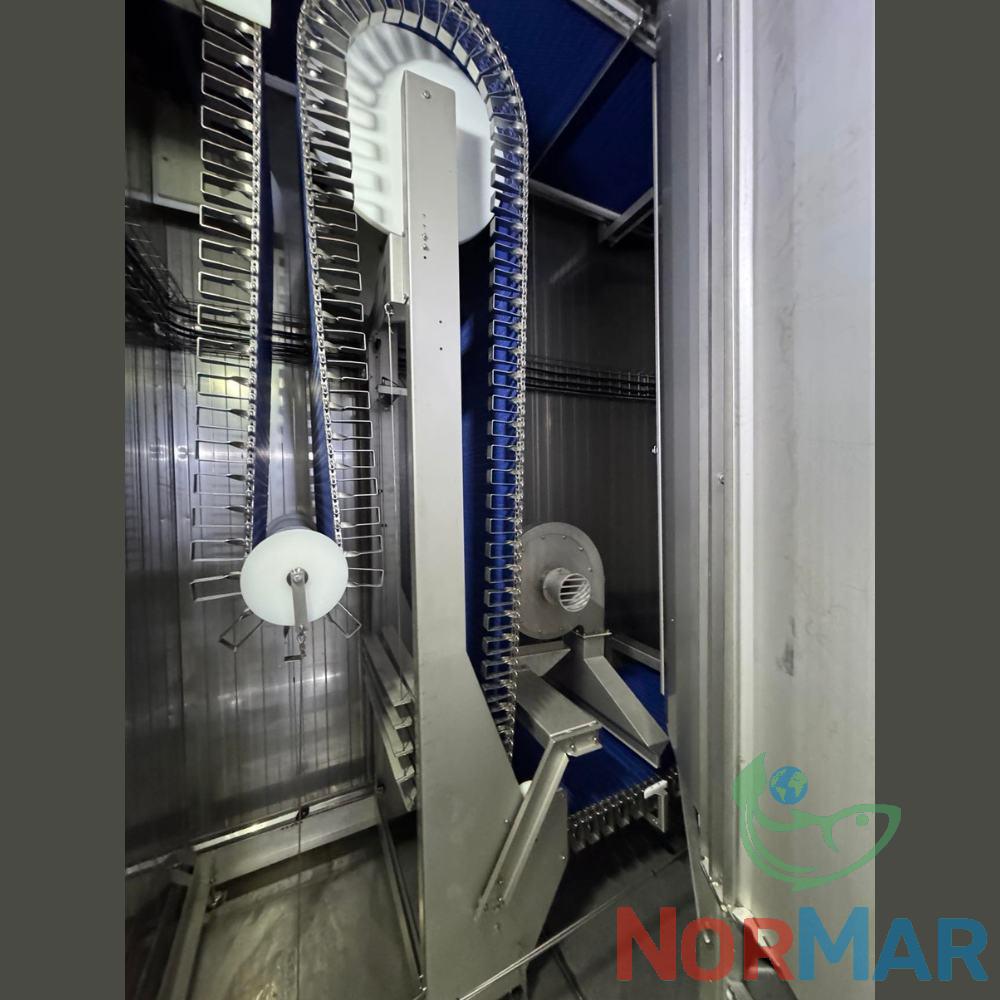

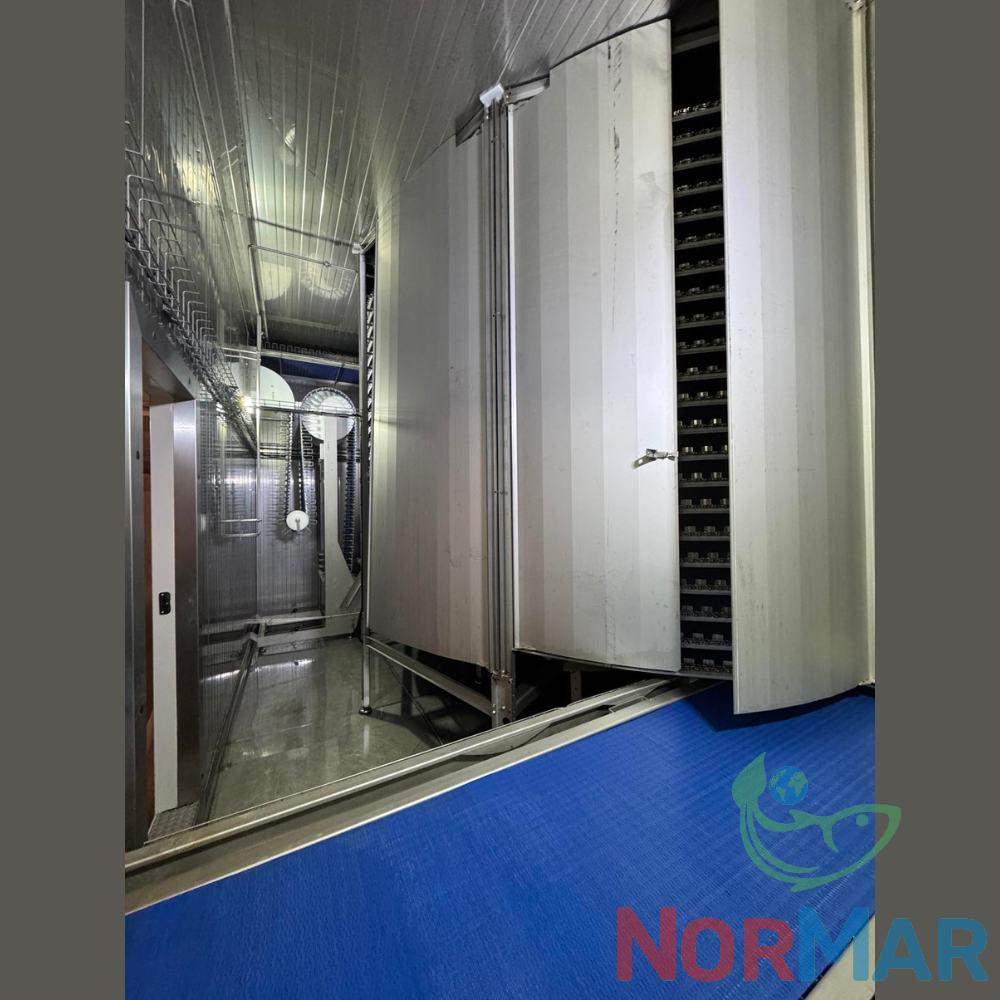

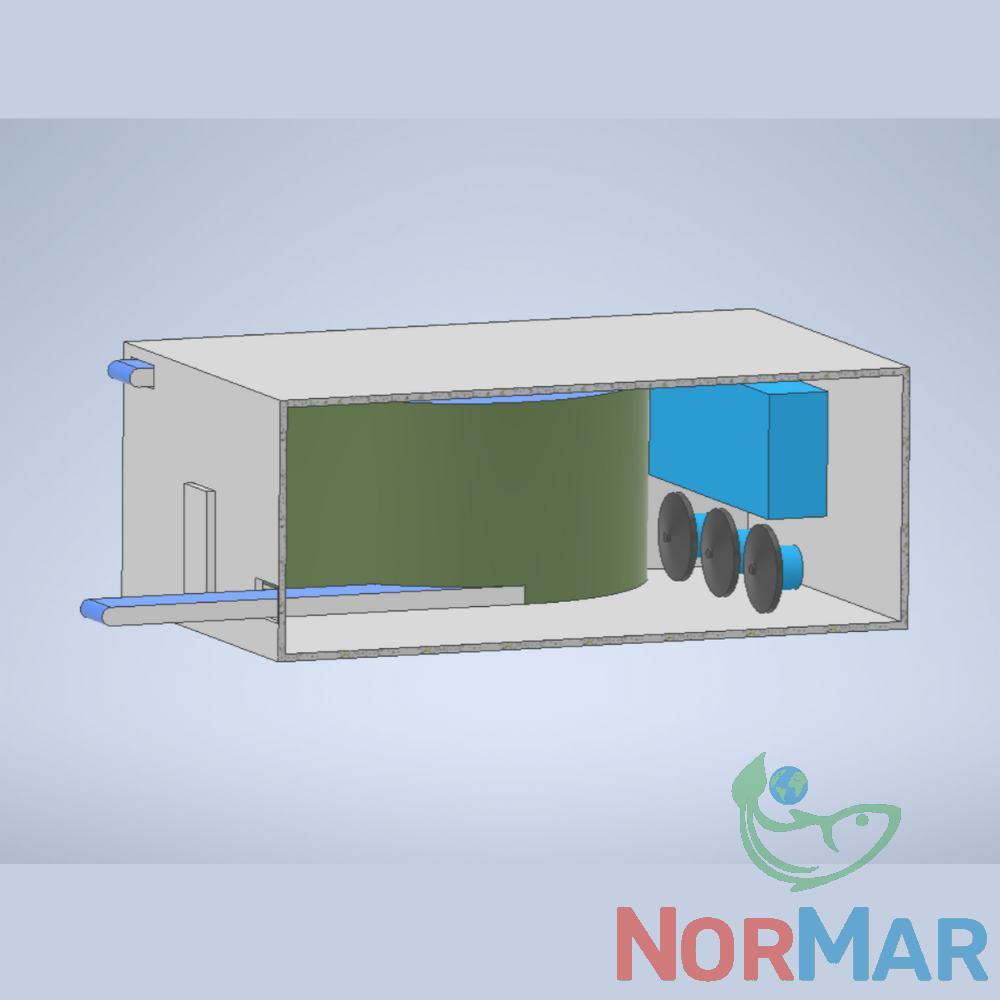

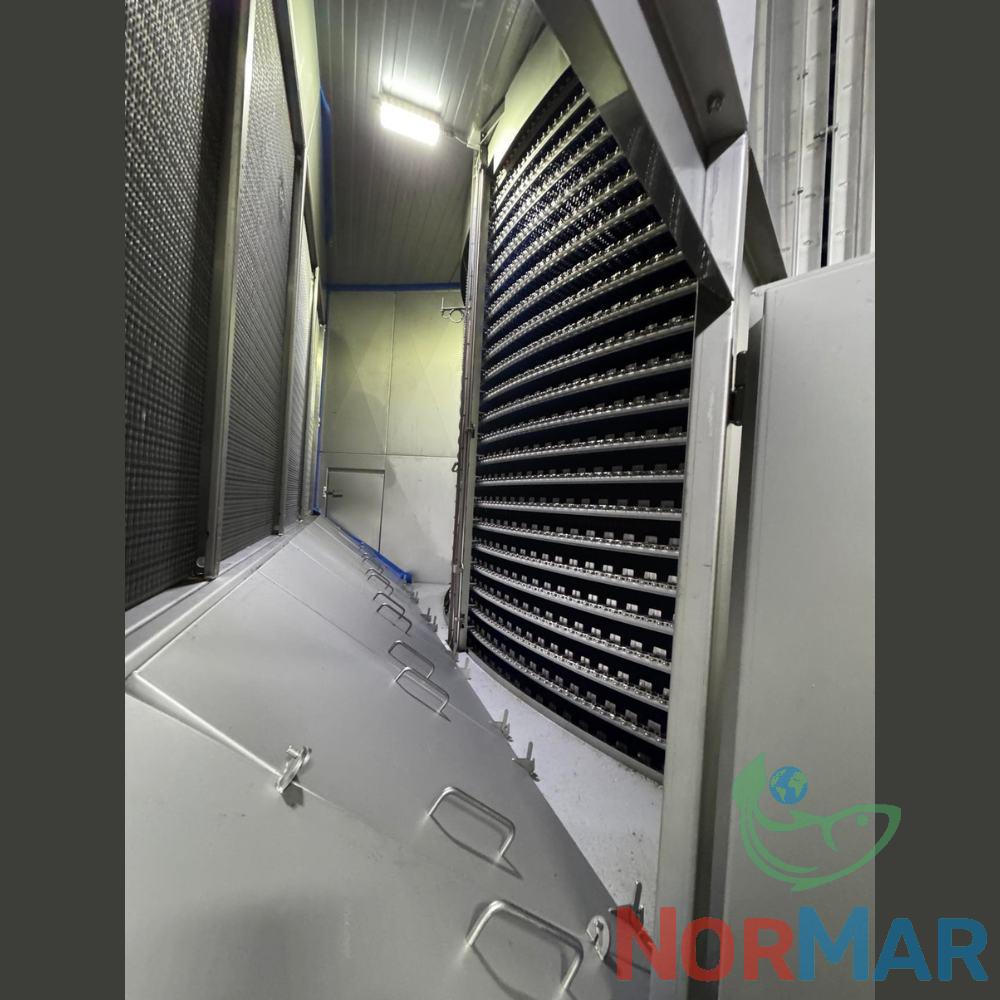

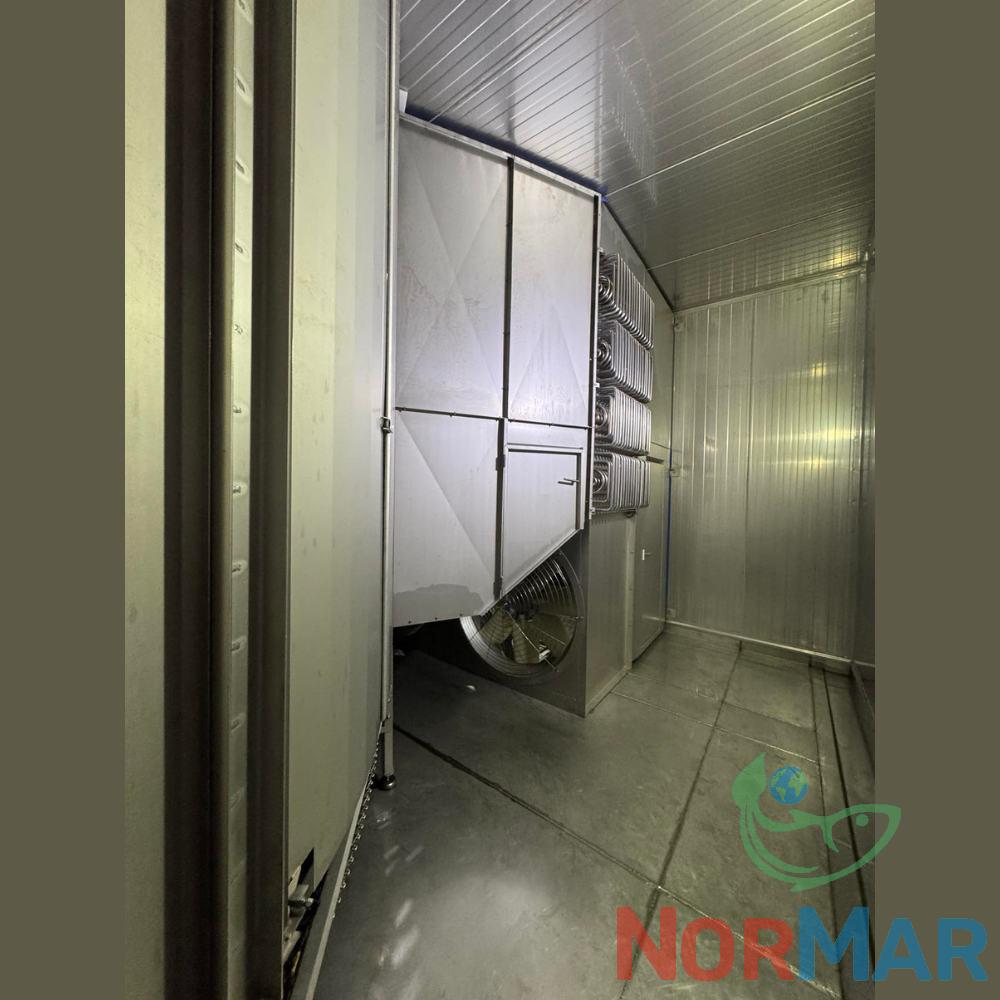

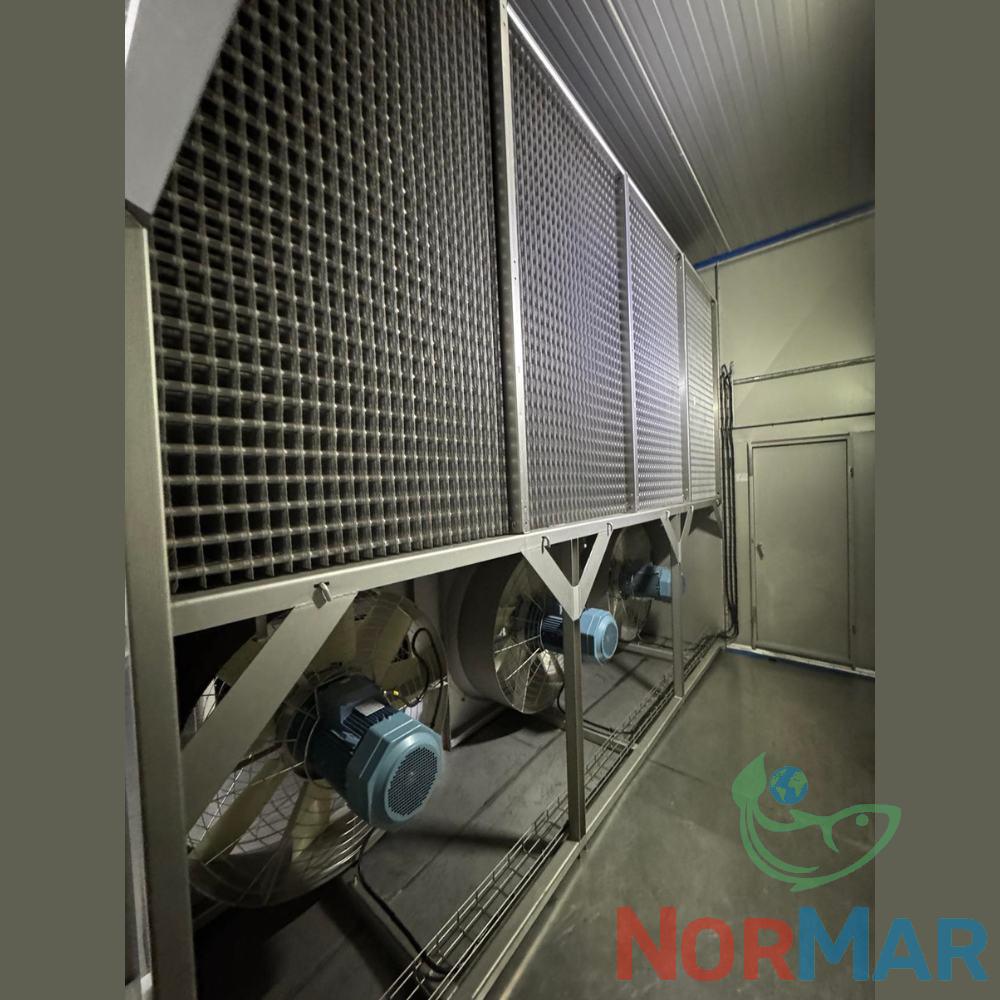

Spiral Freezer Scanico consists of a spiral arrangement built inside an isolated enclosure. The internal air is continuously cooled and circulated horizontally over the product. This freezer is ideal for food applications where a fast and uniform cooling is required. With its unique belt-stacking system, is presumably the most effective spiral freezer on the market when it comes to capacity and energy consumption. The unique belt design makes the it highly suitable for freezing of convenience products such as chicken nuggets or burger patties.
Main specifications:
• Infeed: North, 1.10 meters from the floor
• Outfeed: North, 3.70 meters from the floor
• Belt width: 80 cm
• Distance between spirals: 10 cm
• Height of the first spiral: 70 cm from the floor
• Cabinet size: 15 m x 10 m x 4.5 m
• Capacity: Up to 1000 kg per hour
• Spiral Freezer Scanico is delivered with the compressor currently in use. The compressor is large enough to be used for the entire facility.
• Tube volume approx. 652 l
