Description

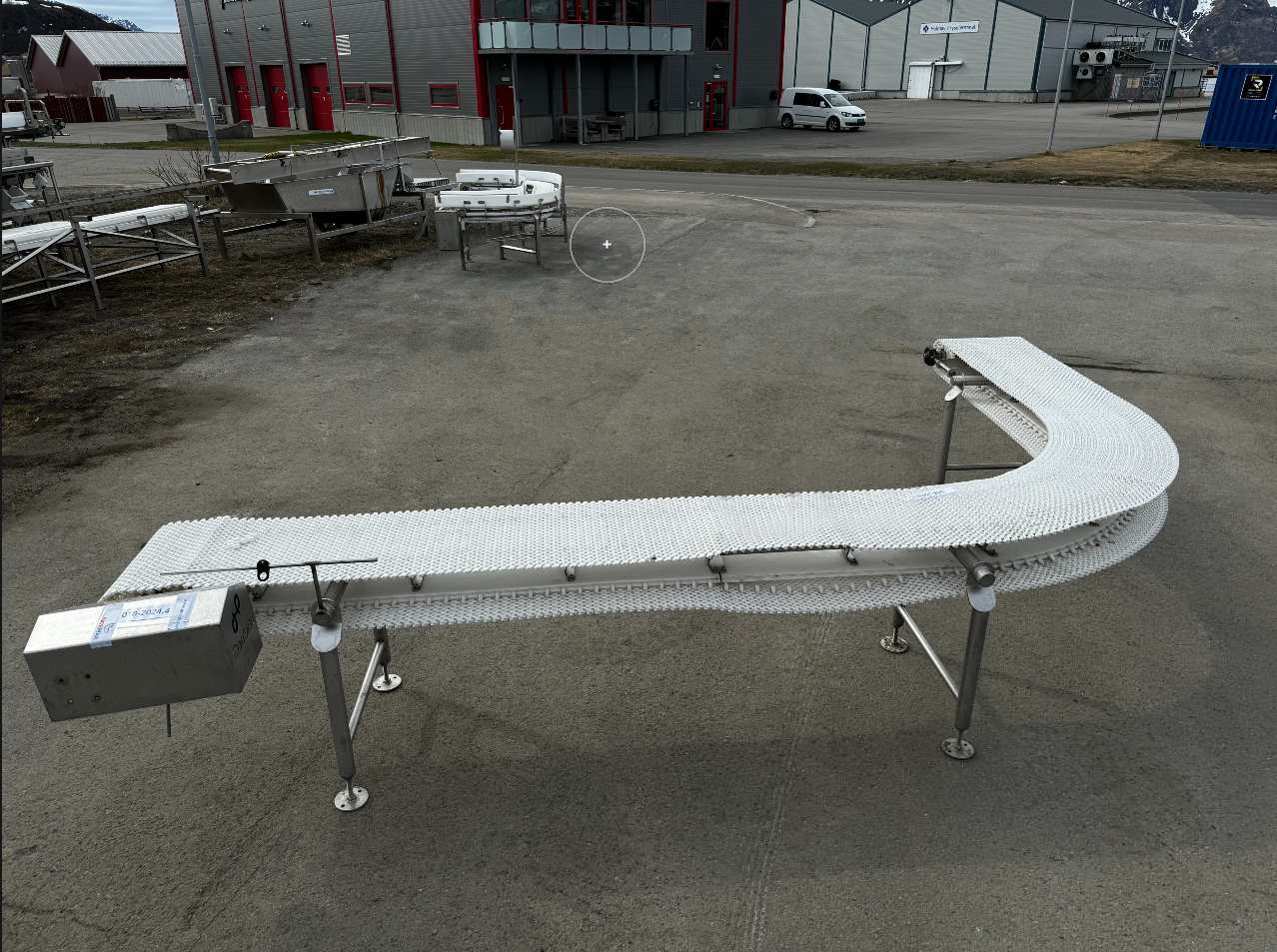

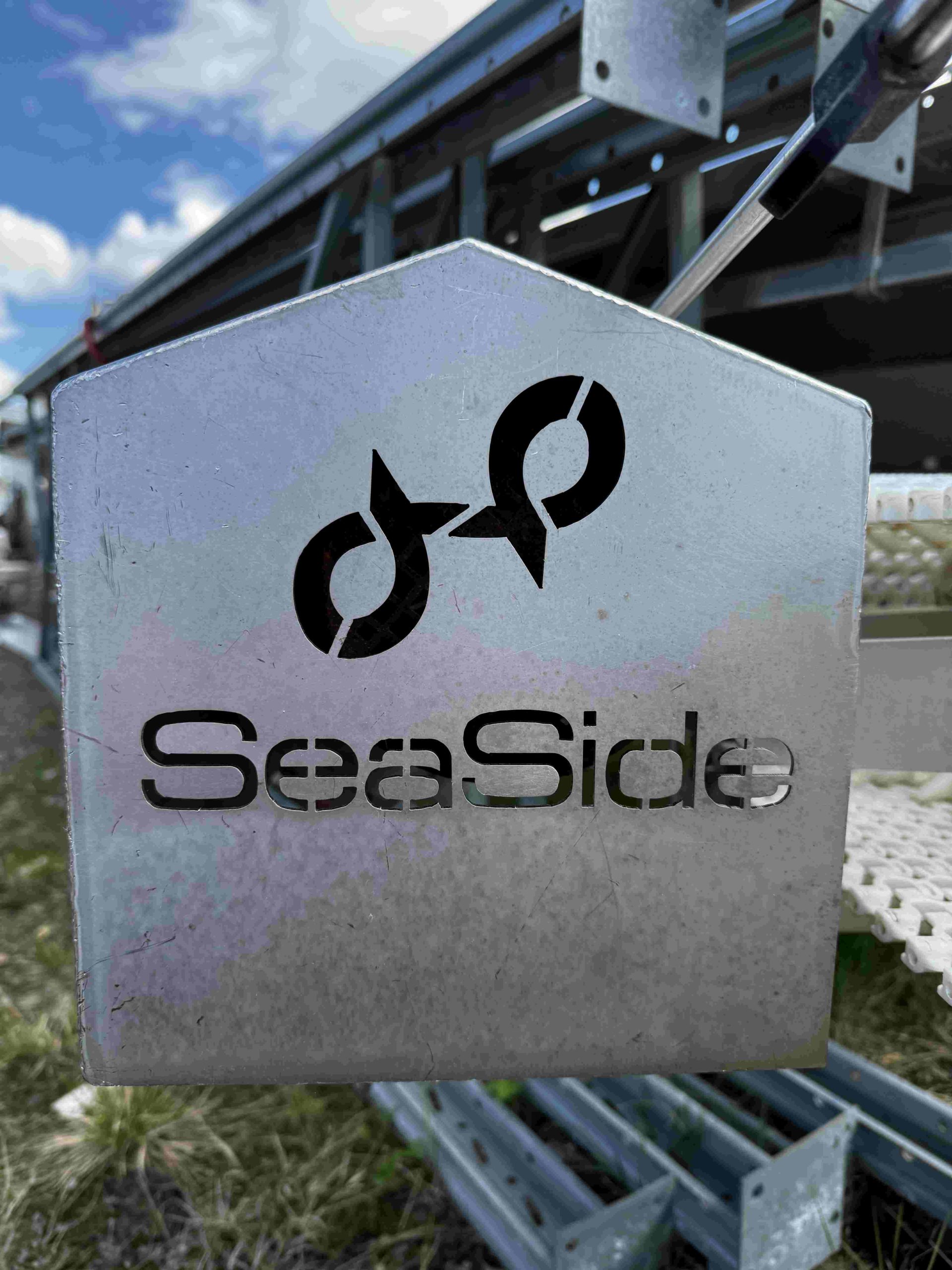

Seaside conveyor angular sections.
These transport systems is customizable, offering the flexibility to be produced in dimensions tailored to the specific requirements of our valued customers.
Can be used with various processing equipment.
Dimensions, based on item labels on photos:

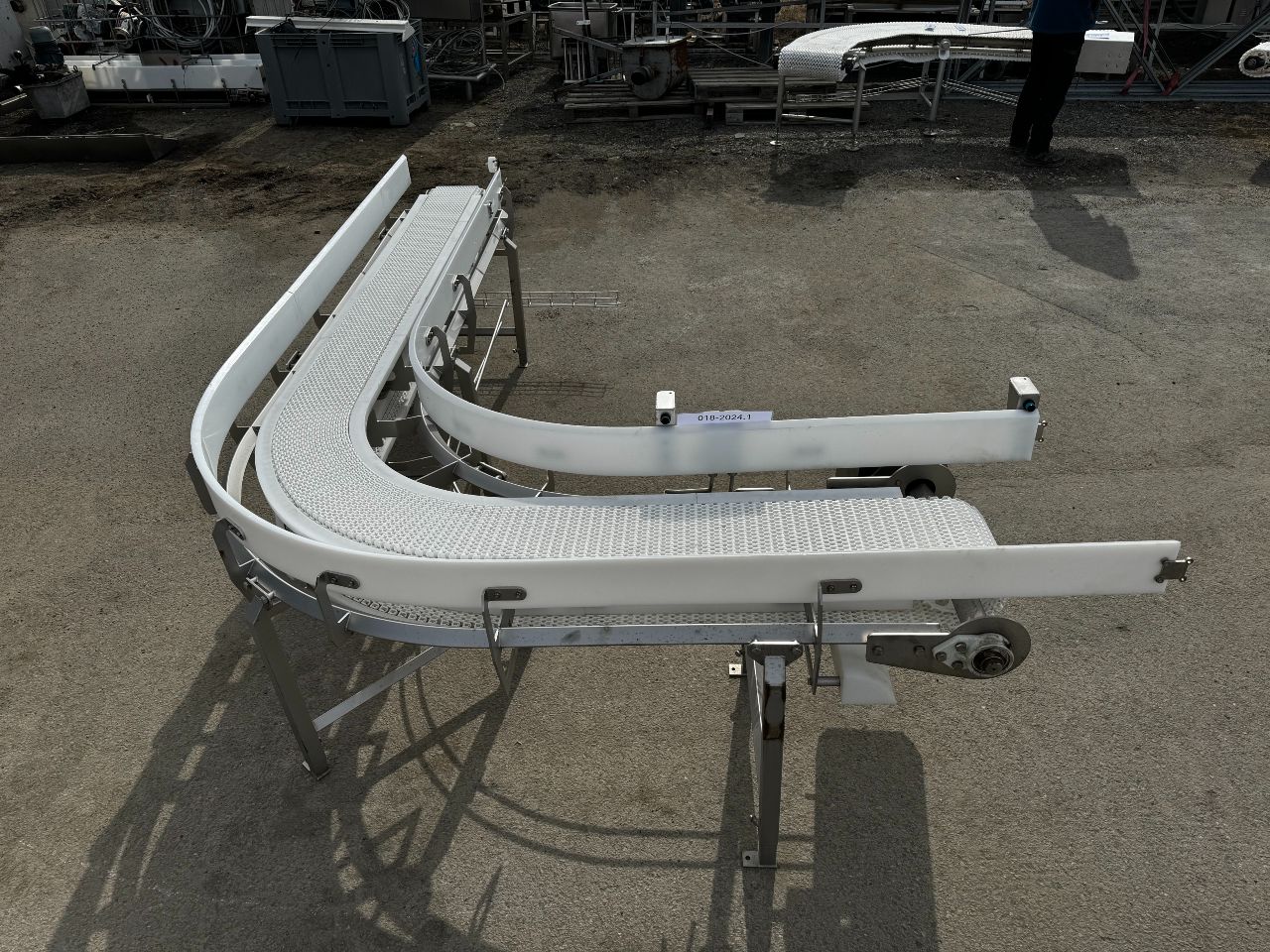

Item 018-2024.1
Outer belt length: 454 cm
Inner belt length: 340 cm
Width of conveyor: 48 cm
Width of belt: 18/27 cm
Loading dimensions LWH: 290*210*100(adjustable) cm
Inductor motor SEW-EURODRIVE:
220-240/380-420V, 50Hz, 0.375Kw
IP54

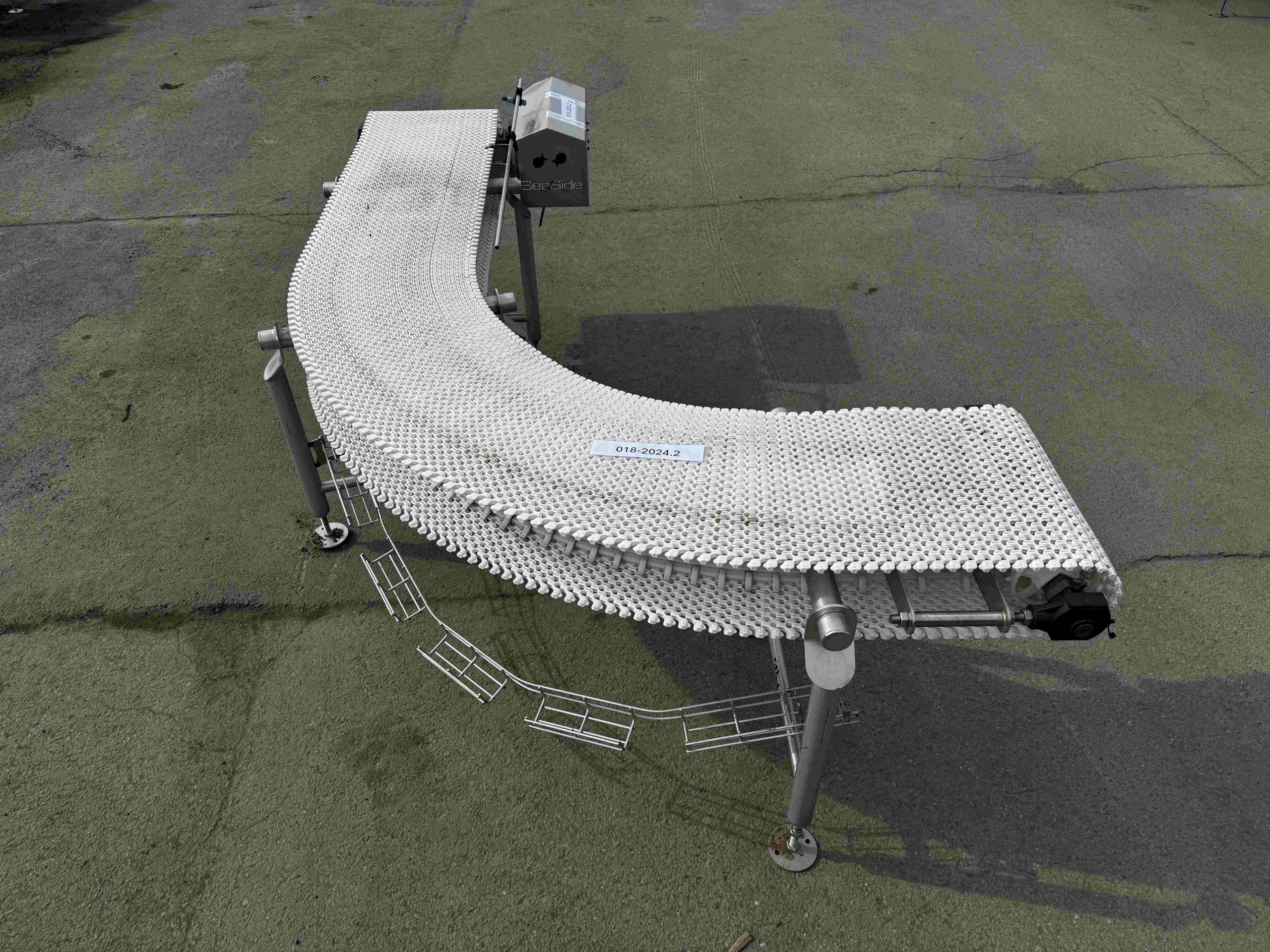

Item 018-2024.2
Length of belt: 335 cm
Length of belt inner: 270 cm
Width of belt: 44 cm
Loading dimensions LWH: 230*170*100(adjustable) cm

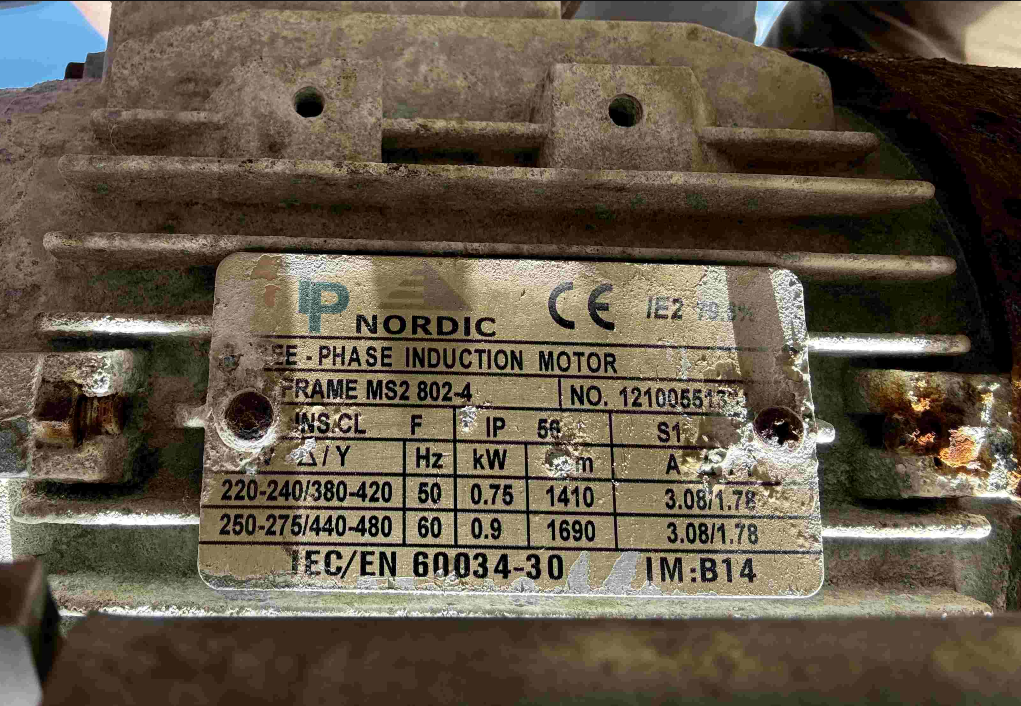

Inductor motor Nordic:
220-240/380-420V, 50Hz, 0.75Kw
250-275/440-480V, 60Hz, 0.9Kw
IP56

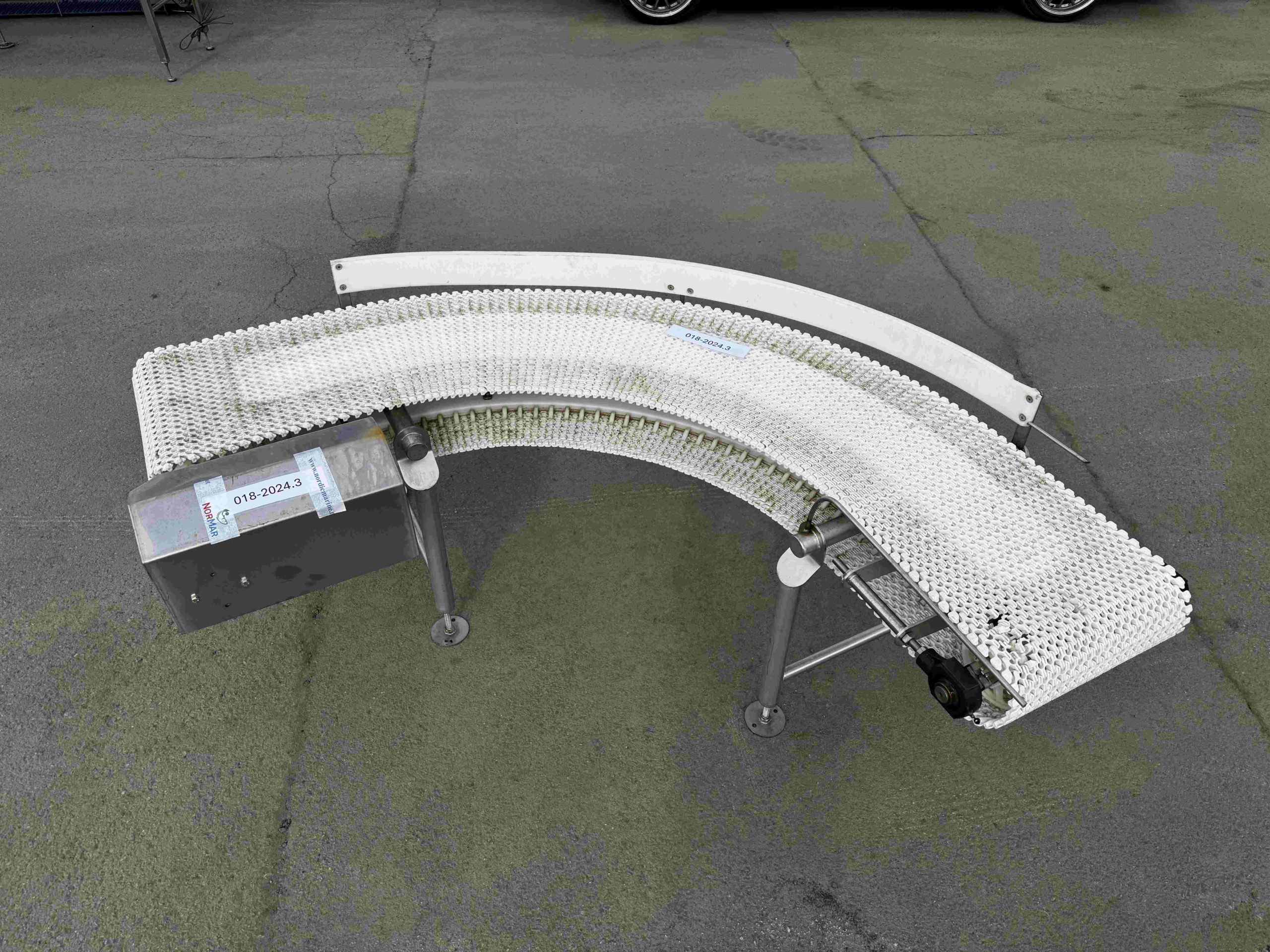

Item 018-2024.3
Length of the tape outside/inside: 280/210 cm
Width overall: 44 cm
Loading dimensions LWH: 170*170*100(adjustable) cm
Inductor motor Nordic ~
Item 018-2024.4
The length of the belt outside/inside: 550/480 cm
Loading dimensions LWH: 370*230*100 cm
Inductor motor Nordic ~
