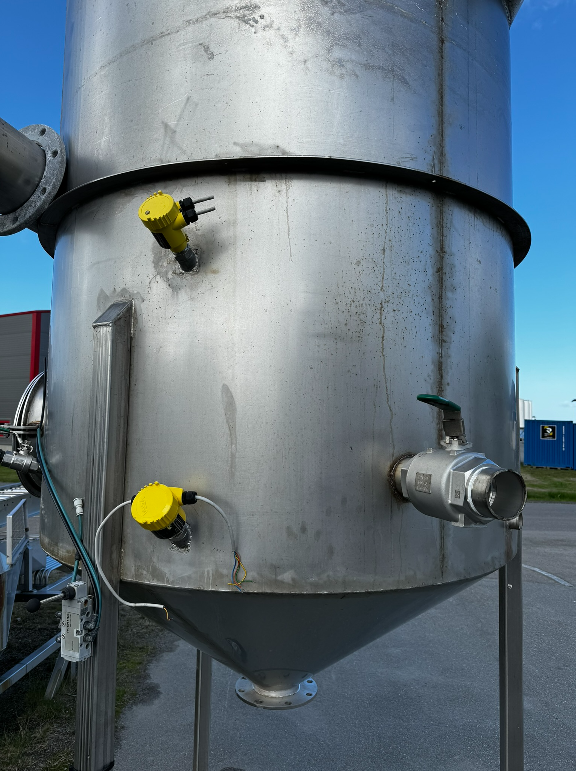

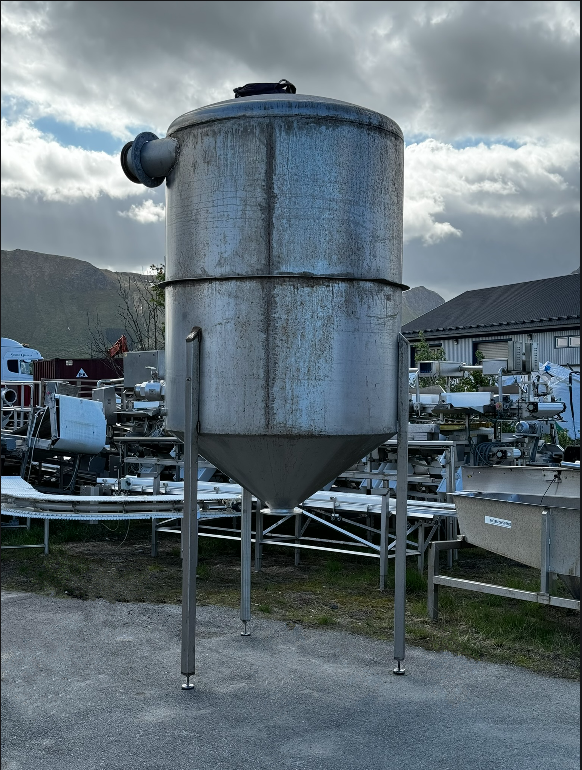

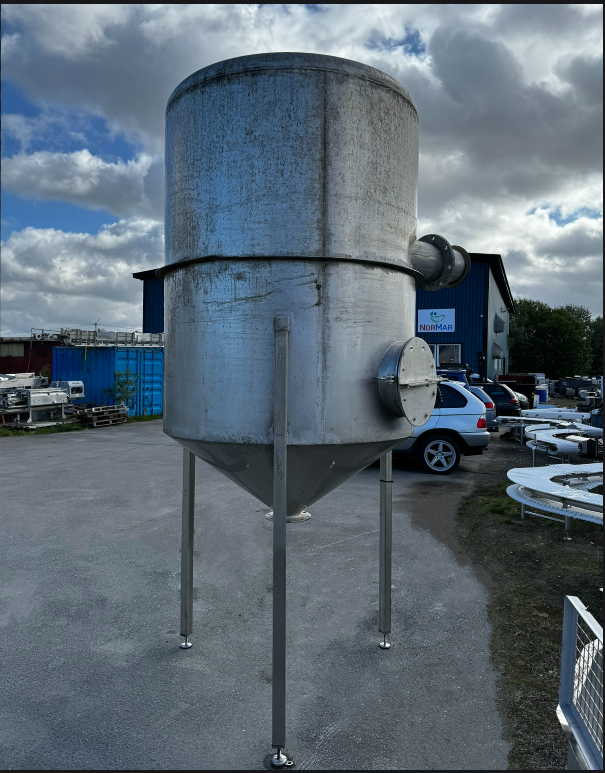

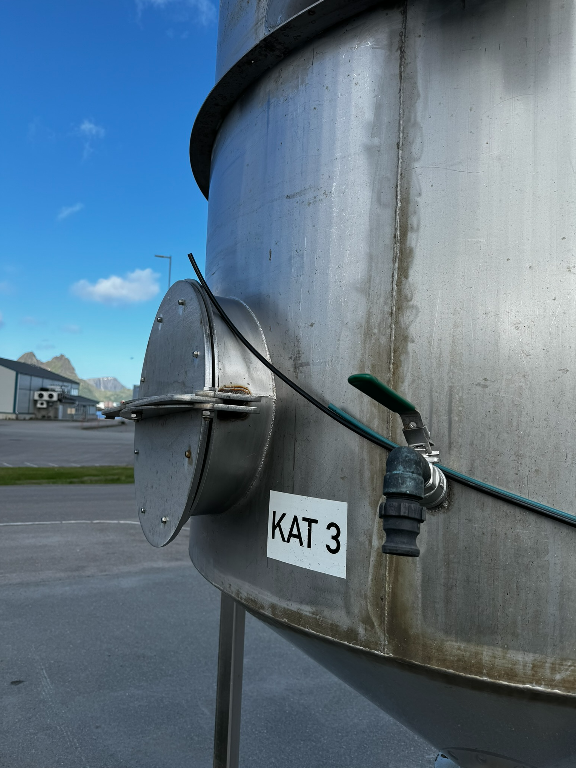

Cyclone for Gutting Machines
This cyclone is designed for collecting intestines from Baader 142 Fish Gutting Machine (from several machines simultaneously) or similar machines where waste collection is required using a vacuum.
Diameter: 1500 mm,
Cylinder height: 1880 mm,
Cone height: 530 mm,
Total height (with legs): 3440 mm +/- 100 mm (legs are adjustable).
Bottom flange: 275 mm outer diameter, 150 mm inner diameter.
Connection flanges: 340 mm outer diameter, 215 mm inner diameter.
